Description

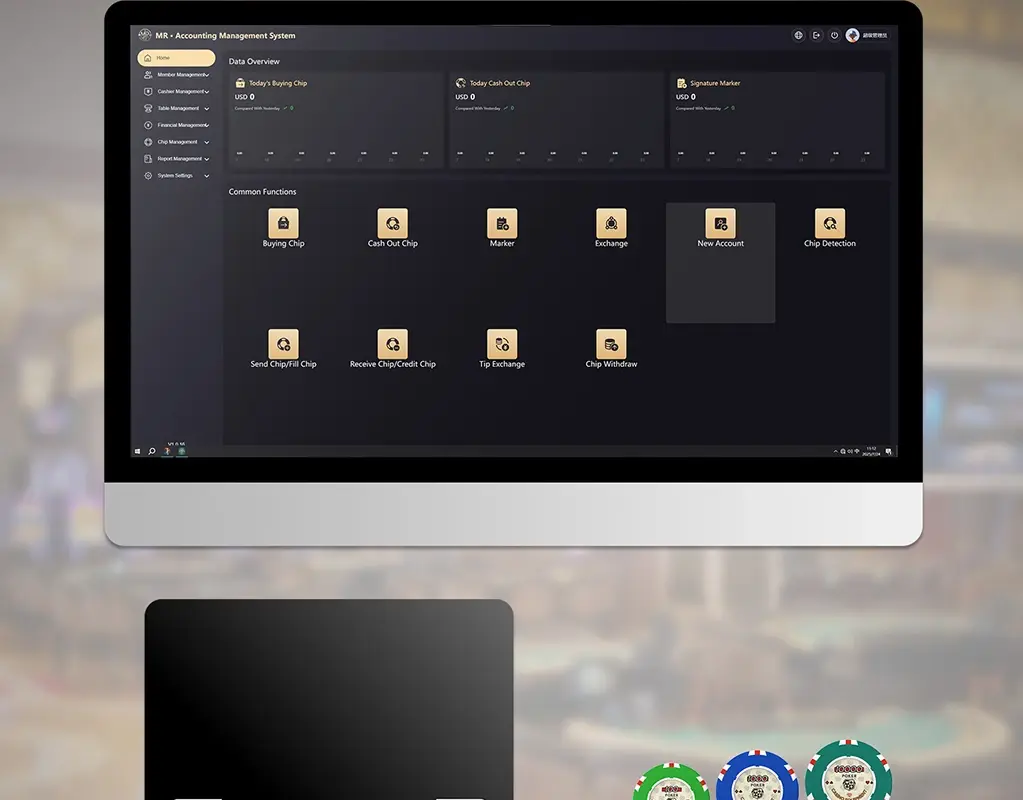

A casino cage RFID chip reader is a countertop board that authenticates RFID-embedded chips and records every issue, return, fill and credit transaction at the cage. Macaumr’s reader board verifies each chip identifier against the casino management system and syncs the result in real time.
What does a casino cage RFID chip reader do?

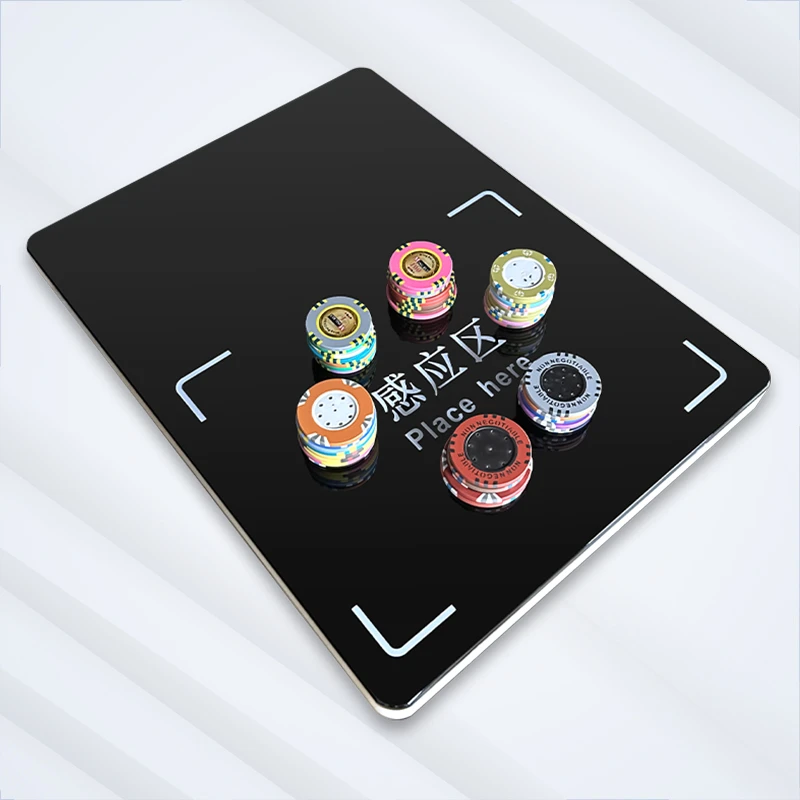

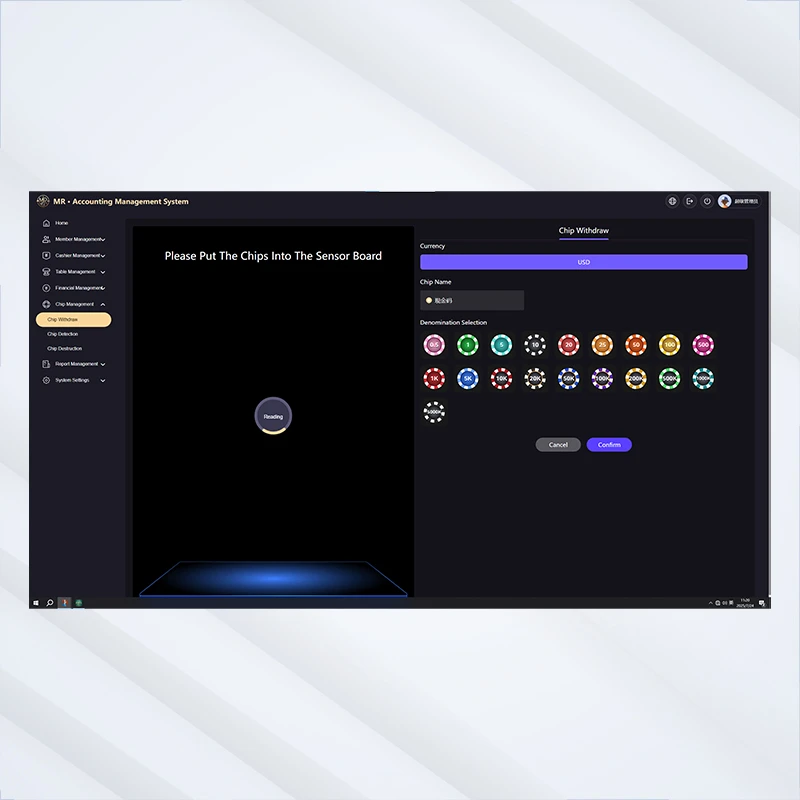

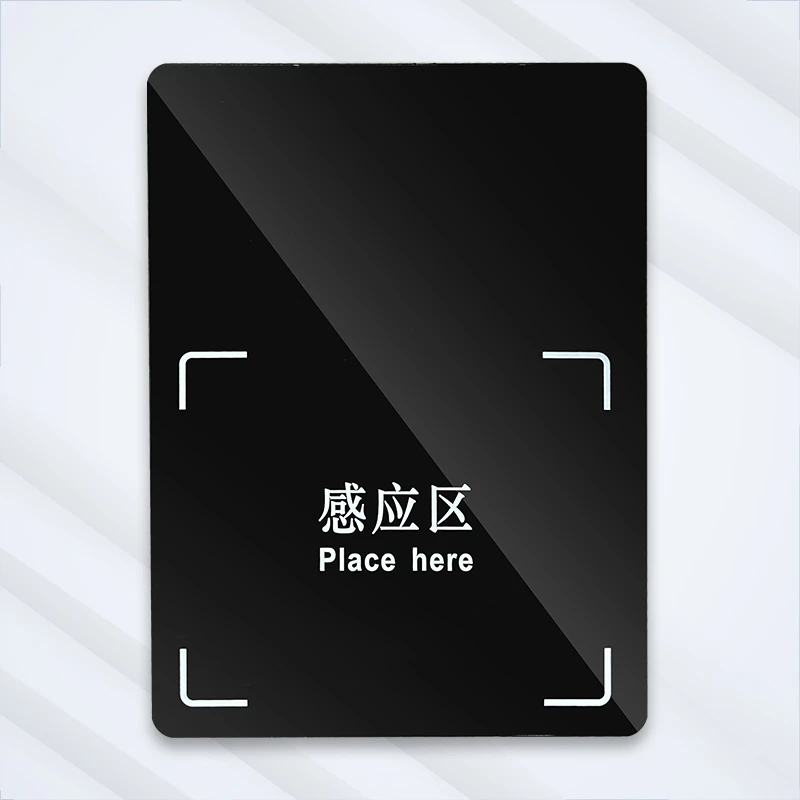

The reader board sits at the cashier counter and reads the RFID tag inside each chip. When chips are placed on the board, the unit captures their identifiers and checks them against the system database, so the cage can confirm what is in front of it instead of counting by hand. Chips that do not match an authorized record are flagged immediately.
The result is a chip record that is created at the moment of the transaction rather than reconstructed at the end of a shift. Issue, return, destruction, warehousing, fill and credit are all logged against the chip identifiers detected, which is what makes the cage position reconcilable.
How does the reader verify chips at the counter?

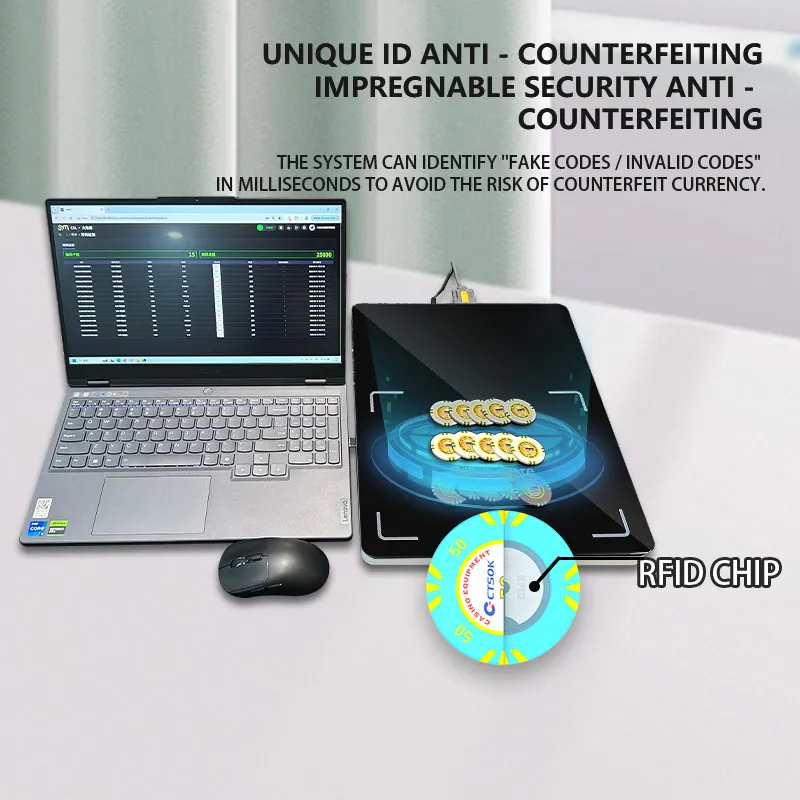

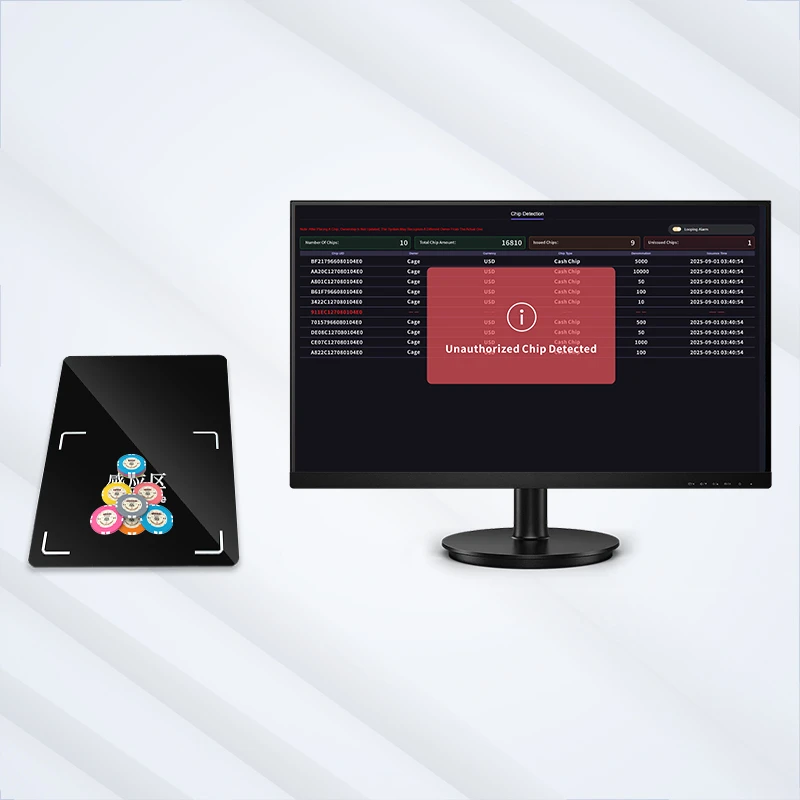

Each RFID casino chip carries a unique identifier in its tag. The board reads that identifier, and the software matches it to the authorized chip record. Counterfeit or unregistered chips are flagged with an alert instead of being accepted into inventory.

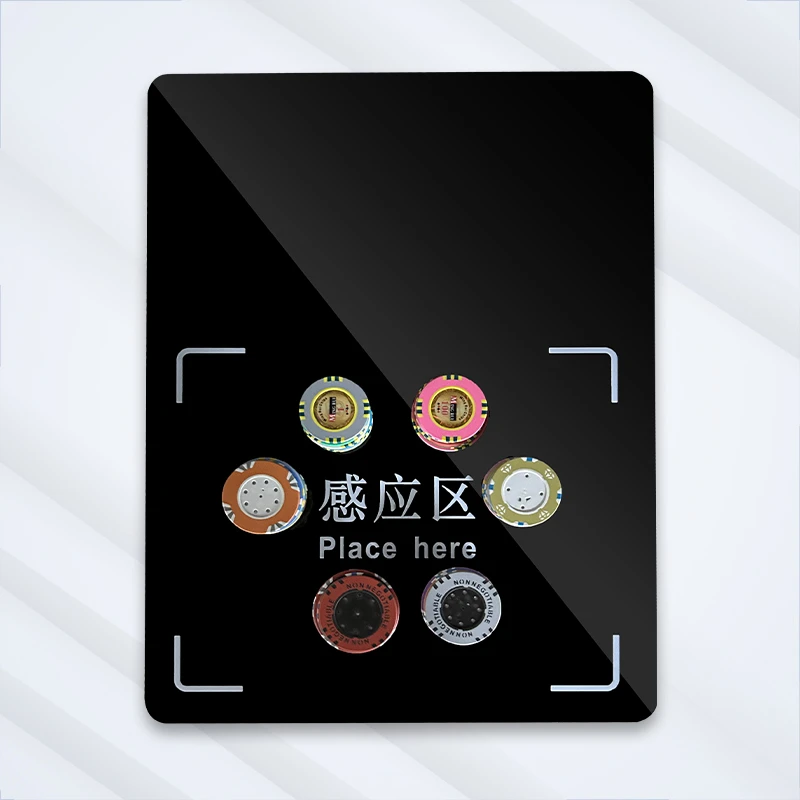

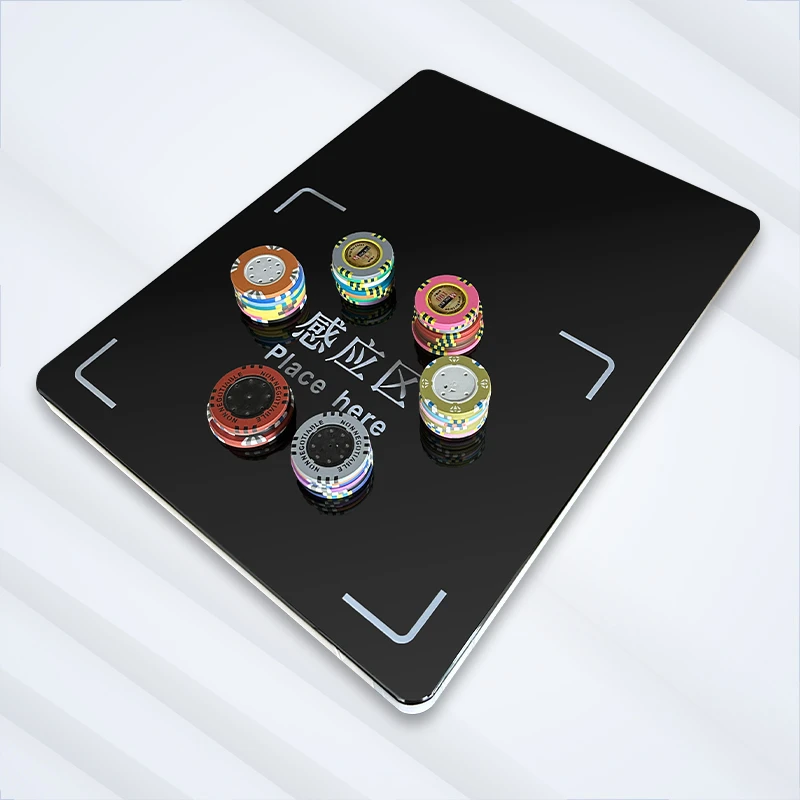

Because no line of sight is needed, a stack of chips can be verified in one placement. In practice that removes the manual hand count, reduces counting errors and stops counterfeit chips from circulating through the cage unnoticed.

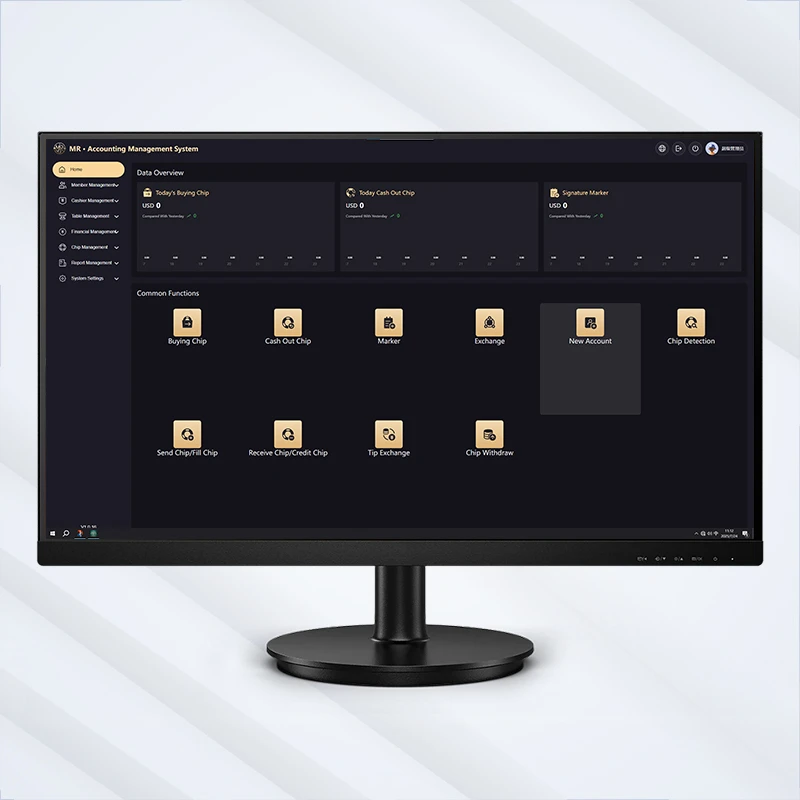

Which cage operations does the reader cover?
- Issue: record each chip’s RFID data when chips are issued to players.
- Return: validate and reconcile returned chips against system records.
- Destroy: flag decommissioned chips for audit-compliant removal from inventory.
- Warehousing: track chips held in cage storage for accurate float balancing.

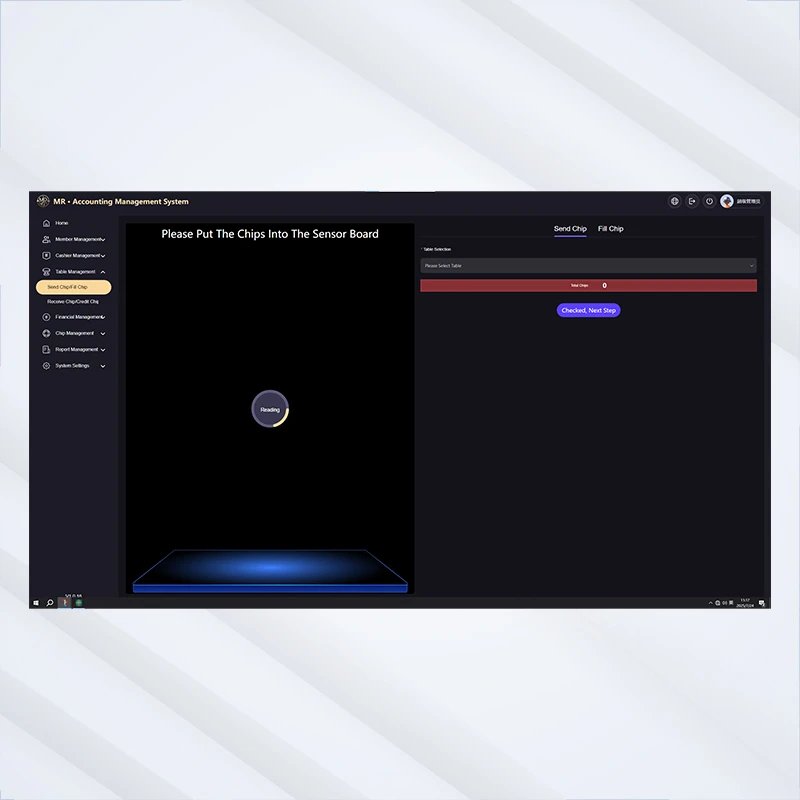

- Fill: manage chip movement from the cage to the gaming tables with full accountability.

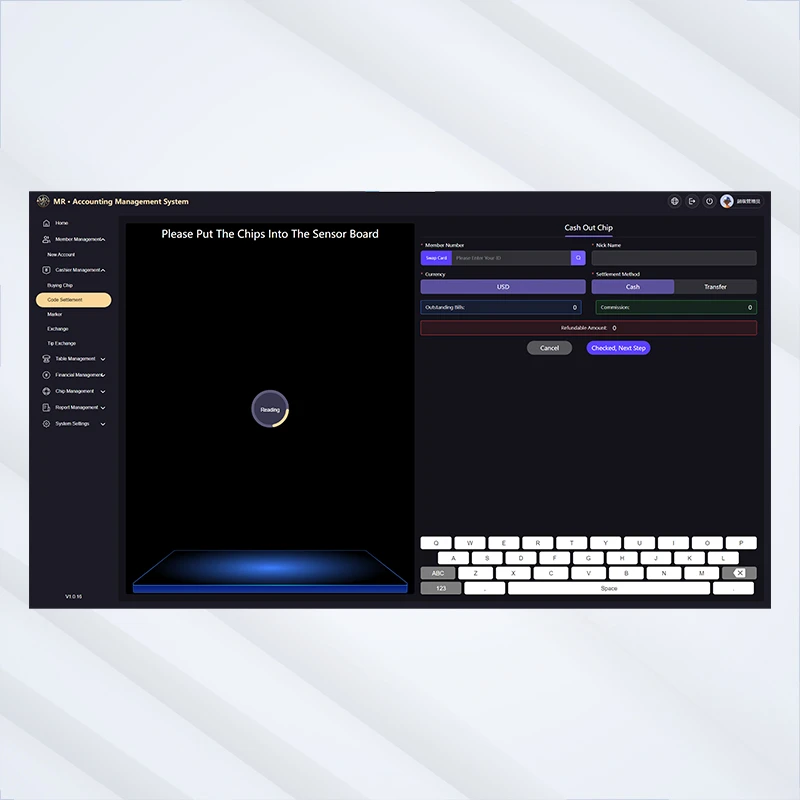

- Credit: validate and reconcile chips returned from the tables to cage inventory.

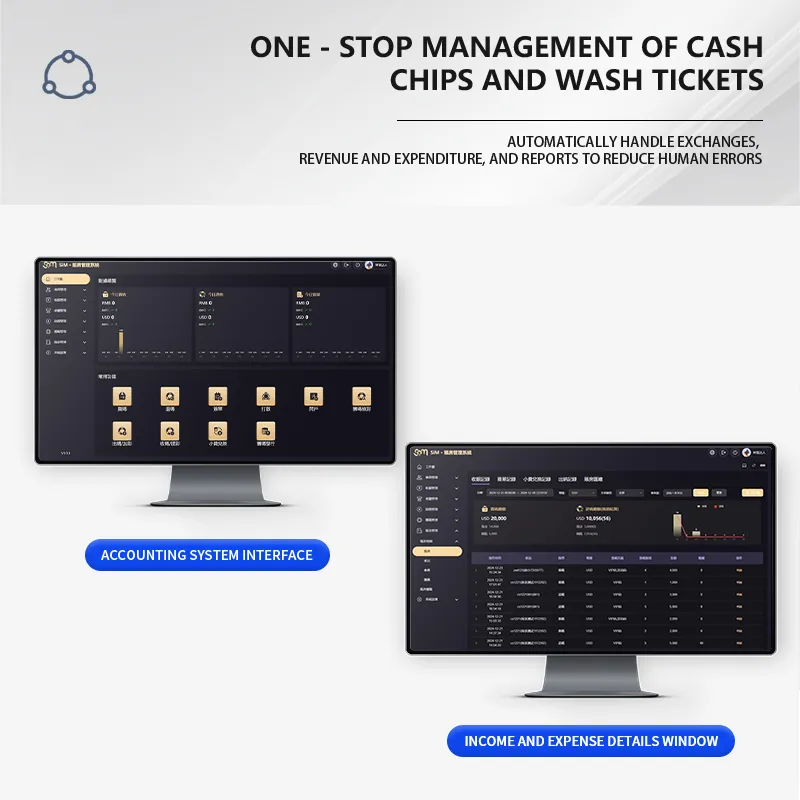

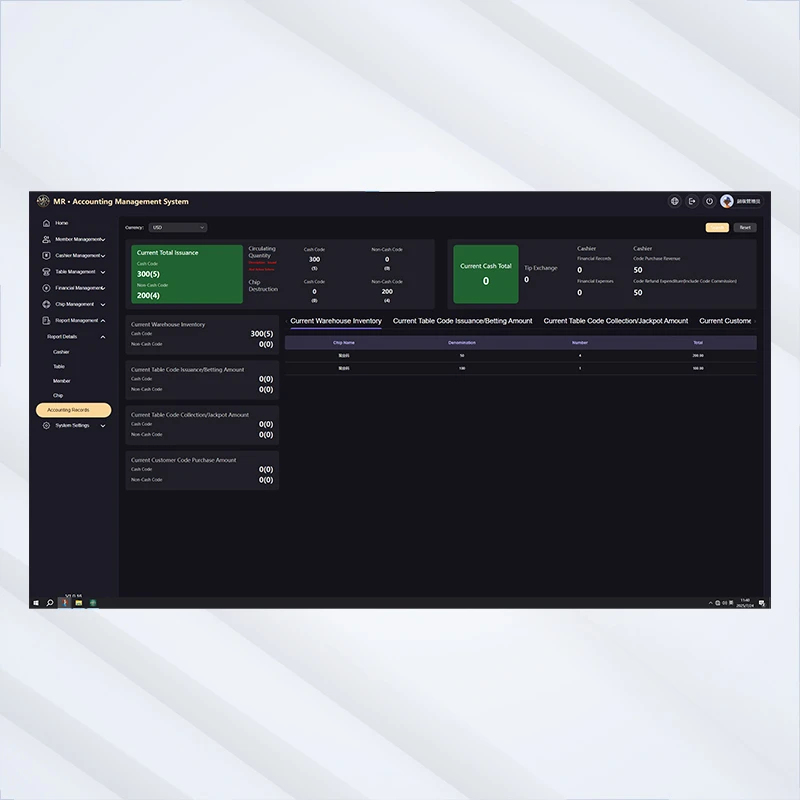

All six operations sync to the casino management system in real time, giving cage supervisors the data they need for inventory reconciliation, regulatory compliance and auditing.
What are the technical specifications?
| Parameter | Specification |
|---|---|
| Product | Casino Cage RFID Chip Reader Board |
| RFID frequency | 13.56 MHz (HF) / 860-960 MHz (UHF) |
| Chip types | RFID-embedded casino chips (HF and UHF) |
| Read speed | Single chip under 0.5 s; batch read up to 100 chips |
| Connectivity | Ethernet, RS-485, USB; CMS API |
| Compatibility | SiM Cage management system; third-party CMS via API |
| Form factor | Embedded countertop board |
| Operating temperature | 0°C to 50°C |
| OEM / ODM | Custom firmware, form factor and CMS integration available |
How does the reader connect to the casino management system?
The board connects over Ethernet, RS-485 or USB and exposes a CMS API for the software layer. It works directly with the SiM Cage management system, and third-party casino management platforms are integrated through the API.
For proprietary systems, the integration is part of the OEM service: the interface is developed around the platform’s data requirements rather than assumed to fit. Send the platform name and version with the enquiry so the integration scope can be confirmed before the order.
What can be customized for OEM projects?
- Firmware: adapted to the workflow and the software interface in use.
- Form factor: countertop board dimensions and mounting arrangement for the counter layout.
- CMS integration: custom API work for proprietary casino management platforms.
- Frequency configuration: HF or UHF, matched to the chips in circulation.

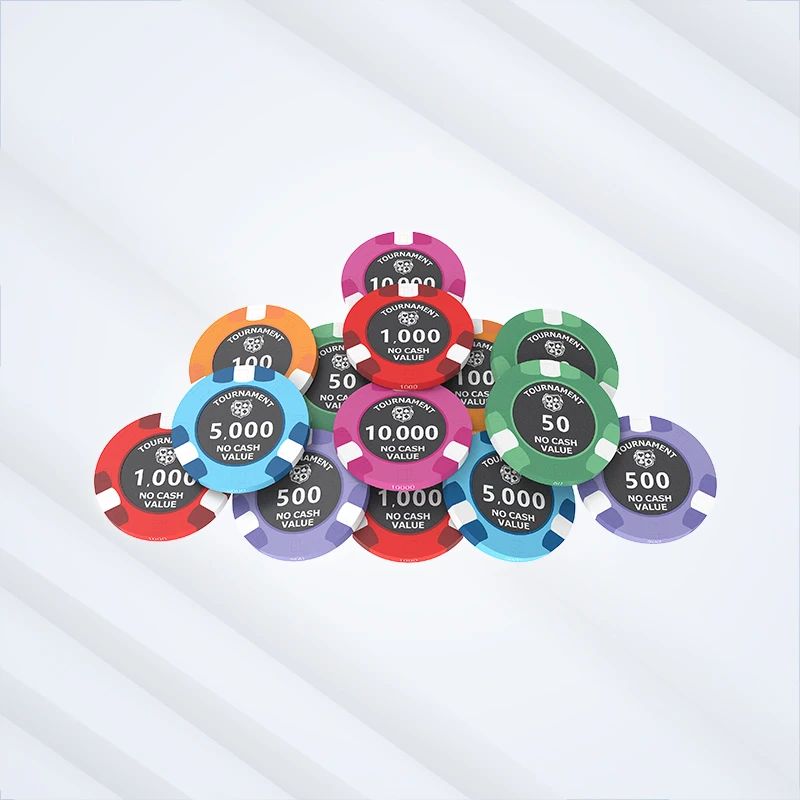

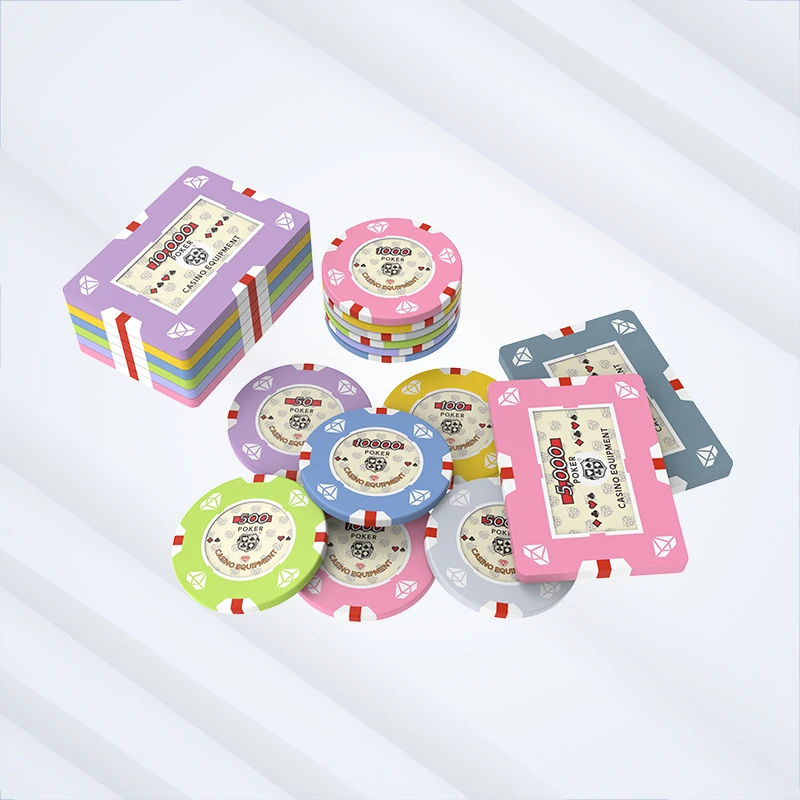

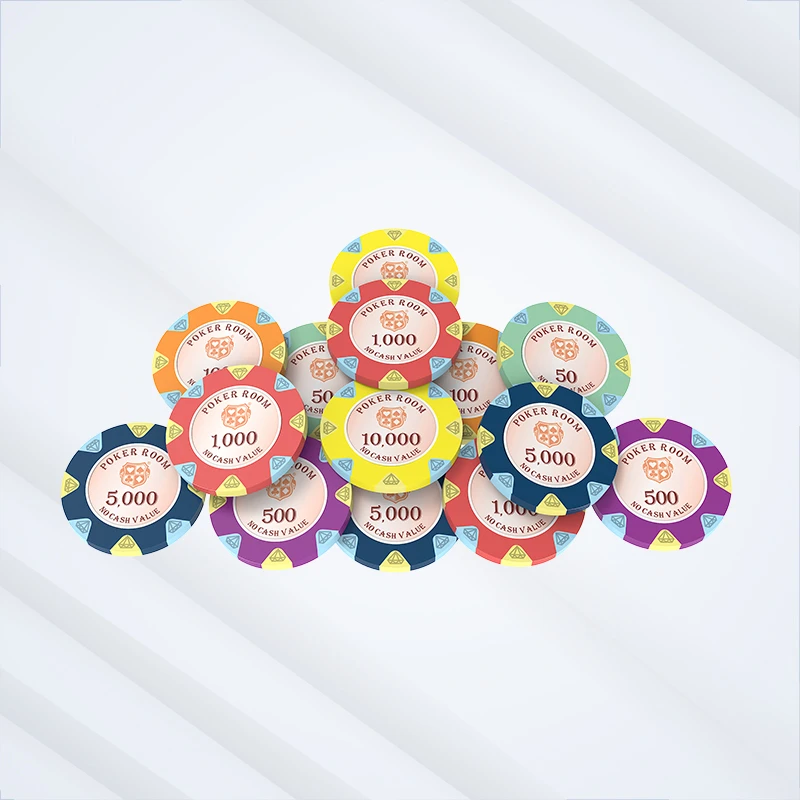

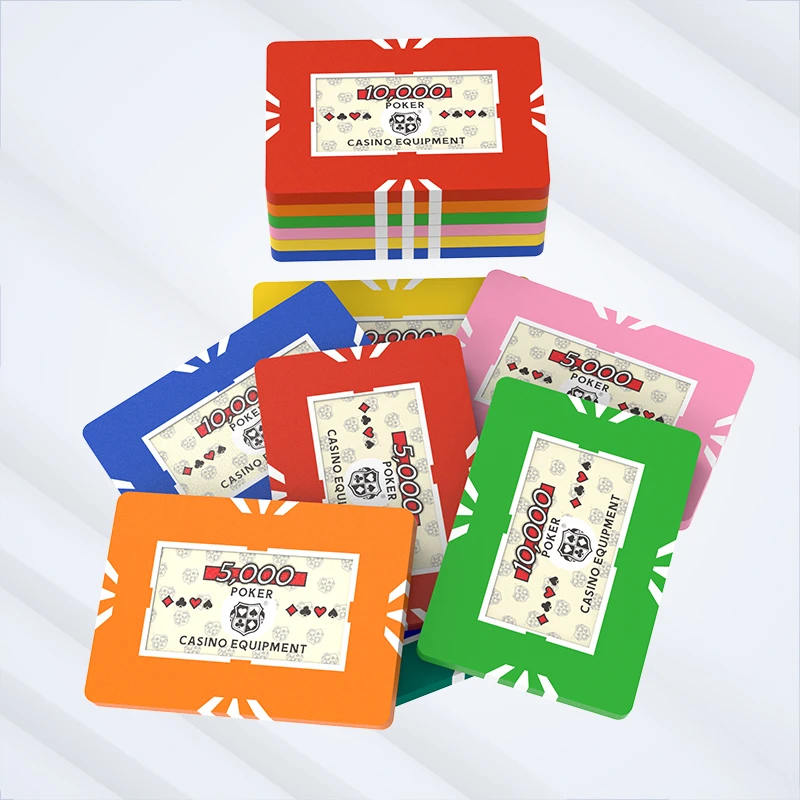

The reader is normally deployed with the chips it will read. Macaumr produces RFID poker chips in clay composite, ceramic and acrylic builds for 13.56 MHz (ISO 15693) environments, and the wider cage chips system covers the chip-management side of the same project.
What else does a cage RFID deployment need?
The reader board is the counter station. A cage deployment usually adds the portable RFID handheld terminal for verification in the pit and during chip transport, and RFID gaming tables where table-level reading is required. The RFID chip sensing device range covers the full reader family.
Macaumr has manufactured casino equipment in Panyu, Guangzhou since 2013 and supplies operators, distributors and system integrators across Europe, America, Russia, Japan and South Korea, Southeast Asia, Central Asia, Africa and the Middle East (About Macaumr).
How do you order the cage reader board?
Send the cage workflow, the chip specification and the casino management system in use. There is no fixed minimum order quantity: the minimum is confirmed per project because it depends on the configuration, the integration scope and the deployment size. Production typically takes about one to two weeks after the specification is approved, and reference units are available for a non-refundable sample fee.
Talk to the team before the reader is specified. Reach Macaumr on WhatsApp at +853 63403801, on Telegram at https://t.me/lym52 or by email at [email protected], or start from the contact page.
