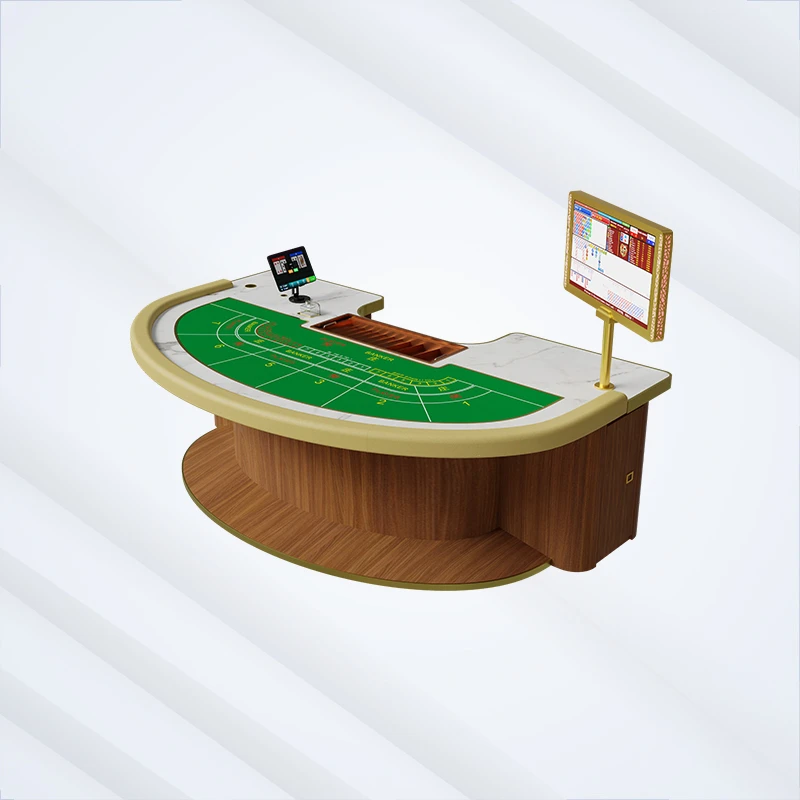

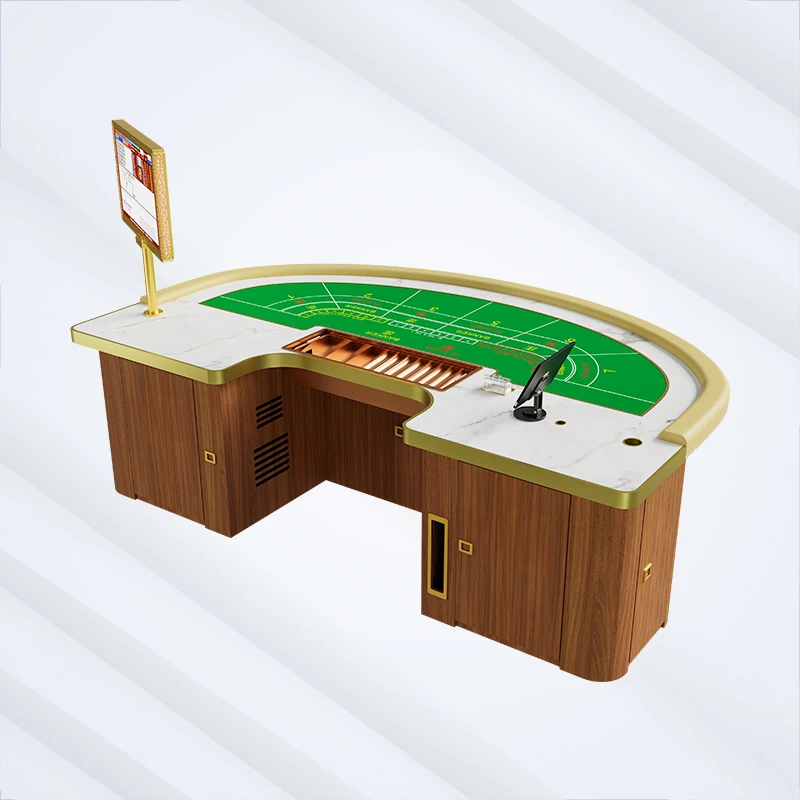

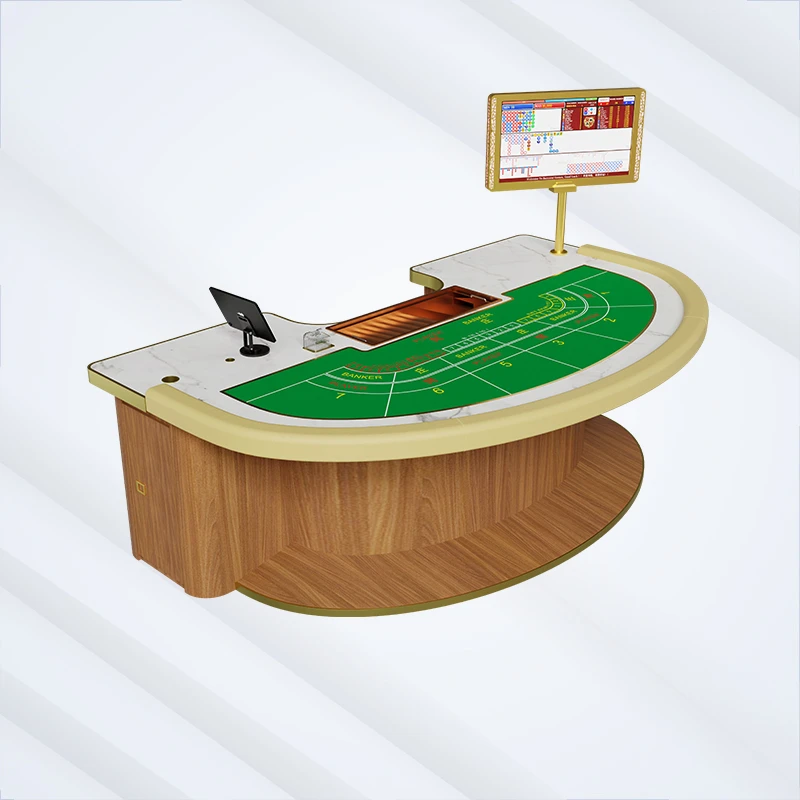

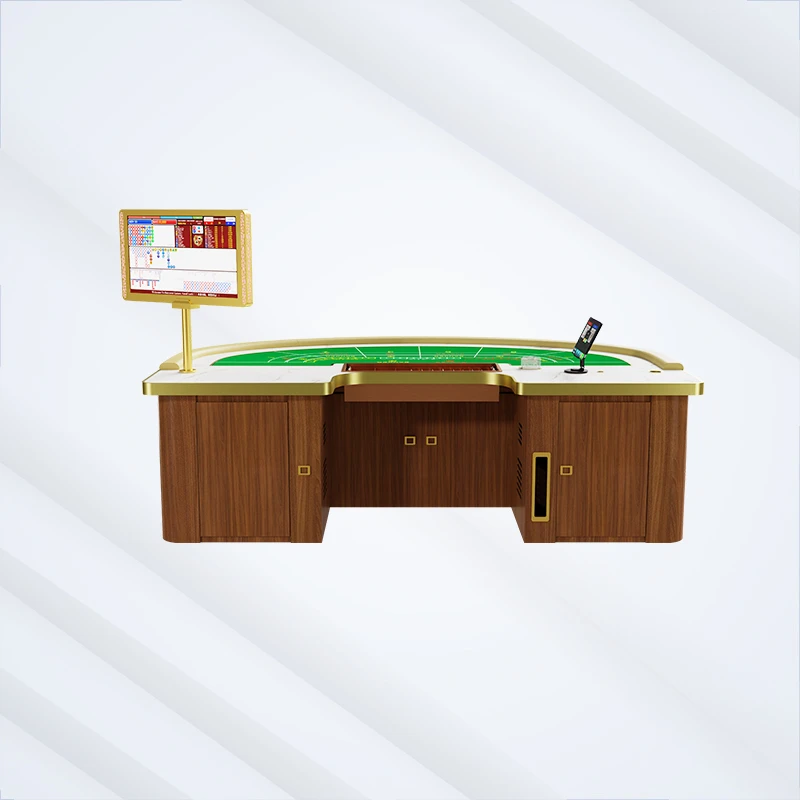

Macaumr’s BA10 RFID baccarat table is a solid hardwood gaming table with an under-felt antenna array that reads every chip in the betting areas in real time. It verifies bets automatically, flags chip substitution and unauthorised movement, and streams seat balances and drop data to pit management.
What makes an RFID baccarat table different from a standard table?
A standard baccarat table accepts chips; an RFID table observes them. The sensing layer sits under the felt, so the table knows which denomination was placed, where it landed and when it moved — without a dealer or supervisor counting anything. That turns game protection and pit reporting from a manual check into a continuous process.
Three components work together:
- mit RFID ausgestattete Casino-Chips — each chip carries a unique tag with denomination and serial data. The table works with standard 13.56 MHz HF RFID chips, including the Macaumr RFID poker chip range.
- Unterfilz-Antennenanordnung — antennas embedded beneath the playing surface read every chip placed in the player, banker and tie betting areas, returning denomination, count and position.
- Control unit and display output — bet totals, seat balances and game history are pushed to pit management screens or dashboards, and can drive the venue’s Baccarat-Anzeigesysteme.
How does RFID chip tracking work during play?
Reading happens continuously rather than at a single check point. When chips are placed, the array identifies each denomination and its position; when they are removed or moved, the change is registered. The result is automatic bet verification per seat, position tracking across the layout, and a game record that can be reconciled against cage data at the end of the shift.
Because verification is automatic, the table removes the three failure modes operators ask about most: manual count errors, chip substitution at the betting area, and unauthorised chip movement during play.
What are the specifications of the BA10 RFID baccarat table?
| Parameter | Spezifikation |
|---|---|
| Table type | Baccarat table with integrated RFID sensing module |
| Frame material | Solid hardwood, customizable finish |
| RFID frequency | 13.56 MHz (HF), compatible with standard RFID casino chips |
| Sensing zones | Player, banker and tie betting areas |
| Seat configuration | 7-seat or 9-seat, customizable |
| Detection speed | Real-time, sub-second per zone scan |
| Data output | USB / RS-232 zum Anzeigen von System- oder Grubenmanagement-Server |
| Power supply | Wechselstrom 110–220 V / 50–60 Hz |
| Maße | Customizable; standard approx. 2200 × 1100 × 780 mm |
| Gewicht | Approx. 120 kg, varies by configuration |
Which customization options are available?
Wood finish, felt colour and layout artwork, seat count, table dimensions and RFID configuration are all specified per project. OEM orders can carry the operator’s branding on the table and the layout. Send the pit layout, seat count and chip mix and Macaumr will confirm the build before production.
- Macaumr has manufactured casino equipment in Panyu, Guangzhou seit 2013 — über Macaumr.
- The table is specified around 13.56 MHz HF RFID chips, the same technology used across the Macaumr chip, reader and cage range — RFID-Pokerchips.
- RFID tables, chips, readers and cage software are produced by one manufacturer, so the reading points and chip inlay are matched in a single specification — RFID-Spieltische.
How do I specify an RFID baccarat table for my pit?
Provide the number of seats, the game variants you run, the chip denominations and the management system the data must reach. Production typically takes about one to two weeks after the specification and artwork are approved, and shipping and payment terms are confirmed in the quotation.
Message Macaumr on WhatsApp at +853 63403801, on Telegram at t.me/lym52, or by email at [email protected] with your pit layout and chip mix, and the team will confirm the RFID configuration and quotation.
