Description

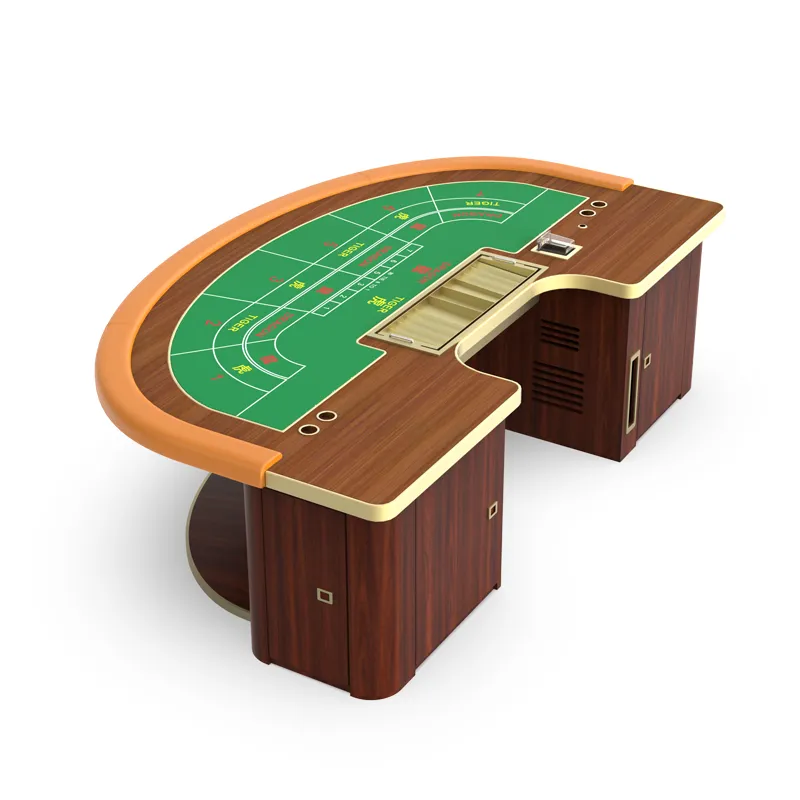

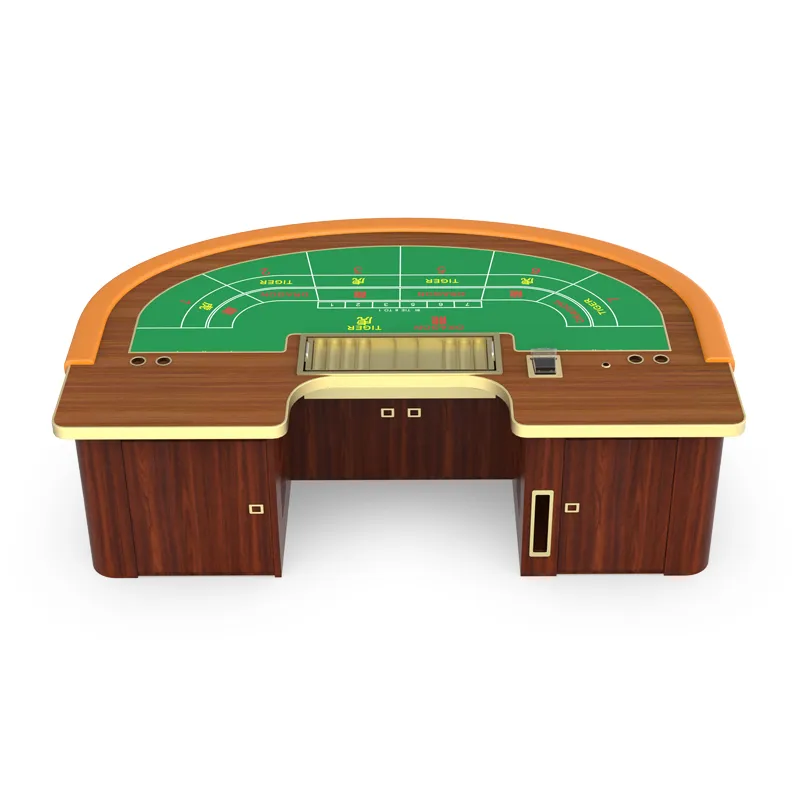

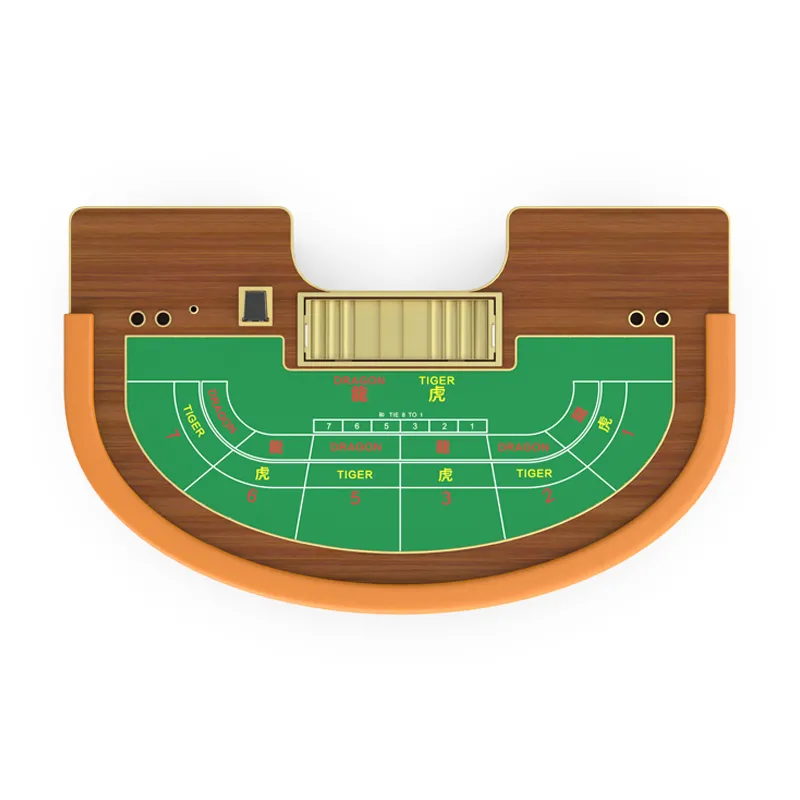

The TB-DTRFID-BC-250150 is Macaumr’s RFID Dragon Tiger table: a compact semi-circular table with seven player positions, an antenna array under the felt, and chip tracking that covers the Dragon and Tiger zones plus the side bets in the same read.
What is an RFID Dragon Tiger table and how does it work?
An RFID Dragon Tiger table is a compact semi-circular table with a reader layer laminated under the felt. The layout carries two main betting positions — Dragon and Tiger — plus the side-bet zones, and the antenna array covers all of them, so a stack is attributed to the bet it was placed on rather than to the table as a whole.
Dragon Tiger turns hands faster than any other card game on the floor, which is what makes reading speed matter. A multi-stack read runs at up to 200 chips per second, a full betting-zone scan completes in under one second. Read accuracy is verified against your own chip stacks and tray during acceptance.
How does it compare with a standard Dragon Tiger table?
A standard Dragon Tiger table is furniture: the dealer and the pit read the layout by eye, and the round is settled from what they can see. An RFID table keeps the same playing surface and adds a reader layer under the felt, so the same table produces live chip tracking instead of a manual count.
| Standard Dragon Tiger table | RFID Dragon Tiger table | |
|---|---|---|
| Bet reading | Dealer and pit read the layout visually | Every stack read continuously at its own zone |
| Side bets | Counted separately by hand | Attributed per zone, so each bet type is totalled |
| Float tracking | Recorded during the shift | Buy-ins, colour-ups and payouts update float as they happen |
| Counterfeit detection | Visual checks only | Unrecognised IDs and denomination mismatches raise an alert |
| If the reader fails | Not applicable | The table continues as a standard table until the fault is fixed |
What are the specifications?
| Parameter | Specification |
|---|---|
| Model | TB-DTRFID-BC-250150 |
| Table type | RFID Dragon Tiger table, semi-circular |
| Dimensions | 2200 × 1100 × 780 mm, customizable |
| Seats | 7 player positions as standard, 9 on request |
| Table shape | Semi-circular, customizable |
| Frame | Solid wood, dark wood grain with gold edging, green felt, beige padded armrest, semi-circular floor base |
| RFID frequency | 13.56 MHz HF; UHF on request (ISO/IEC 15693) |
| Air interface | ISO 15693 / ISO 14443 |
| Read performance | Up to 200 chips per second multi-stack; full betting-zone scan under 1 second |
| Antenna layout | Array under the felt, covering main bets and side bets |
| Anti-counterfeit check | Encrypted unique ID; invalid chips and denomination mismatches flagged; payout rules checked |
| Data interface | USB or RS-232 |
| Compatible systems | Macaumr roadmap system (EC-BA series), casino management systems, dashboard displays |
| Software | Self-diagnosis, live chip-flow monitoring, shift settlement, anomaly alerts, report export, roadmap display sync |
| Data security | Encrypted chip ID, role-based permissions, operation log retention |
| System capacity | 20–50 tables per server |
| Power | AC 110–220V 50/60 Hz |
| Operating environment | 0–40 °C, 20–80% RH |
| Weight | Approximately 120 kg in the reference configuration |
| Installation | Floor-standing; transported as a complete table and assembled on site |
| Minimum order | 1–10 pcs, indicative, confirmed in the quote |
| Lead time | 15–45 working days, indicative, confirmed at order |
| Warranty | 12 months from delivery |
| Packing | Wooden case or carton, confirmed at order |
What can be customised?
Table size, seat count, felt colour and pattern, layout artwork, logo, armrest finish, chip tray, cup holder, antenna placement and packing are specified from the approved drawing. Antenna placement follows the layout: side-bet zones sit in different places on different house layouts, so the array is fixed at the same time as the artwork rather than afterwards.
The standard finish is dark wood grain with gold edging and green felt. Wood finish, felt colour and the printed layout change per project, and the layout artwork has to be approved before the array is placed.
On a side-bet table the layout is the part that moves, so the felt is what gets re-specified most often. Artwork is printed to your drawing and matched to a supplied swatch or Pantone reference, with batch colour variation held to ΔE ≤ 2 and Martindale abrasion data available; fire test reports are supplied to the standard your market requires. Chip tray and cup holder positions, antenna cut-outs, replacement felt tops and armrest covers all follow the approved drawing, and remote diagnostics are available on request.
How are the side bets read?
Side bets sit in zones of their own, separate from the Dragon and Tiger positions, and the reader attributes each stack to the zone it occupies rather than to the seat behind it. Suited Tie, Big/Small and Odd/Even are therefore totalled per bet type instead of being read as one pile of chips.
That separation is what settlement depends on. A single position can carry several stacks at once, and the payouts for each side bet are different, so the totals have to be split before the rules are applied. The table splits them at read time; the pit does not re-count the stacks by hand.
What happens when a reading zone fails?
The antenna layer is self-diagnosing: when a read zone fails, the system reports which antenna and which zone instead of a generic error, so the pit knows where to look before anyone lifts the felt. On the important zones a second antenna backs up the first, which keeps an edge-of-field stack from being missed. An antenna layer can also be retrofitted to an existing Dragon Tiger table after a site assessment, which is how most staged floor upgrades start.
How does the table connect to a casino management system?
Each side-bet total leaves the table as a separate field over USB or RS-232. Macaumr confirms the protocol, the field list and the encryption settings against your platform before production starts, because side-bet mapping differs between systems. The table pairs with the Macaumr roadmap system (EC-BA series); a third-party casino management system is confirmed per project rather than assumed.
One server covers 20–50 tables and carries the live chip-flow monitoring, the shift settlement run, the anomaly alerts and the report export. Access is role-based and the operation log is kept for audit. The chip side is covered by the RFID poker chip range, the cage-side reader by the casino cage RFID chip reader, and the reading hardware on other stations by the RFID chip sensing device range.
How do you order and accept a delivery?
The indicative minimum is 1–10 pcs, and the final figure follows the side-bet layout and the reader configuration. Production is 15–45 working days after the drawing and the layout artwork are signed off.
The table ships crated in wooden cases or cartons and is assembled on site. Its 12-month warranty starts at delivery; remote response is four hours and an engineer can be on site within 24–48 hours. The RFID casino chips B2B guide covers what to specify on the chip side before the order.
Who manufactures these tables?
Since 2013 Guangzhou Yangming Entertainment Products Co., Ltd. has manufactured casino equipment under the Macaumr brand. Factory address: No. 537 Panyu Avenue North, ABP Headquarters Area Building, Room 603-604, Panyu, Guangzhou 511493, Guangdong, China. Our factory has been audited by SGS-CSTC (Report QIP-ASR2411238, 2024) and assessed by Bureau Veritas (MIC-ASR2011166). Current audit and compliance documents are listed on our compliance page, and the wider range sits under Dragon Tiger gaming tables.
